Yo Power 12V 24V 36V 48V 60A MPPT Solar Battery Charge Controller UK NZ

Name: Yo Power 12V 24V 36V 48V 60A MPPT Solar Battery Charge Controller UK NZ
Brand: Yo Power Electrical
Price: 1 USD

China Yo Power 12V 24V 36V 48V 60A MPPT Solar Battery Charge Controller UK NZ wholesale

Brand Name : Yo Power Electrical

Model Number : YQMS-E series

Certification : CE, ROHS, FCC

Place of Origin : Anhui, China

MOQ : 10 units

Price : Negotiable

Payment Terms : L/C, D/A, Western Union, T/T, MoneyGram, Paypal

Supply Ability : 1000 units/month

Delivery Time : With 3 days for 1~10 units

Packaging Details : Carton box with pearl sponge

Rated voltage : 12V/24V/36V/48V auto detect

Charging current : 60A

Charging method : MPPT with 3-stage

Display : LCD

Color : Red

Warranty : 3 years

Contact Now

Yo Power 12V 24V 36V 48V 60A MPPT Solar Battery Charge Controller UK NZ

The MPPT solar battery charge controller, designed for small power solar power system (such as streetlight solar system, RV solar system, monitoring solar system), is an intelligent solar regulator with more than 99.5% charging efficiency. It's widely use in Europe market, such as UK, NZ, Germany and so on. It pass CE, ROHS, FCC certifications.

1. Features

Automatic recognition system DC12V/24V/36V/48V when connect it with your battery at first time
PV Max. voltage (VOC):150VDC
Rated charge current: 60A
Three stages (fast charge, equalize charge and float charge) charge mode to prolong your batteries service life
Four Discharge mode: ON/OFF mode, double time control mode,PV voltage control mode ,PV voltage+time delay mode
Fit for Batteries: sealed lead acid, vented, gel, NiCd battery, Lithium or others
Most information could be provide by LCD Display. For example, model no., PV input voltage, battery type, battery voltage, charging current, charging power, working status and so on
The colloid interface design which can avoid scratching your hand
Good heat dissipation:Aluminum alloy material and fan cooling

2. Parameters

Rated system voltage	12V/24V/36V/48V auto detect
Rated charging current	60A
Max. PV input power	780W (12V) 1560W (24V) 2340W (36V) 3120W (48V)
Max. PV input voltage	150V
High input voltage protection	150V
Charging model	MPPT (Maximum Power Point Tracking)
Regulator method	3 charging stages, bulk charging, equalize charging and float charging
MPPT efficiency	more than 99.5%, whole machine efficiency upto 99.8%
Selectable battery types (Default type is GEL battery)	Flooded, Sealed lead acid, Gel battery (Other types of batterry also can be defined)
Output voltage	Same to the rated system voltage
Output control method	Manual control, PV control, Time control mode, PV&Time control mode
Load control current	60A
Display	LCD
Display language	English
Cooling method	Fan cooling
Protection level	IP25
Dimension	24016866mm
N.W	2.3KG
Packing size	289204101mm
G.W	2.8KG
Packing information	Carton box with pearl sponge
Warranty	3 years

Yo Power 12V 24V 36V 48V 60A MPPT Solar Battery Charge Controller UK NZ

3. Application

Off grid solar power system, RV solar system, streetlight solar system, monitoring system and so on

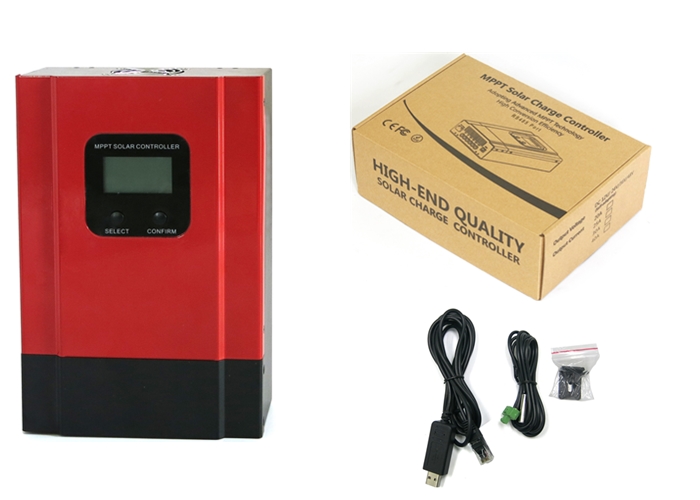

4. Package information

Package Including:
40A MPPT Solar Charge Controller*1pcs
Screwdriver*1pcs
Hang Bracket*2pcs
Temperature Sensor*1pcs

Yo Power 12V 24V 36V 48V 60A MPPT Solar Battery Charge Controller UK NZ
